MICRO 100 - Indexable Turning Toolholders

INDEXABLE INSERT HOLDERS
CHROME NICKEL TOOLHOLDERS FEATURES:

• Durable and unique chrome nickel toolholder
• Positive chip control
• Coolant-thru hole design
• Each holder includes torx screw and torx key

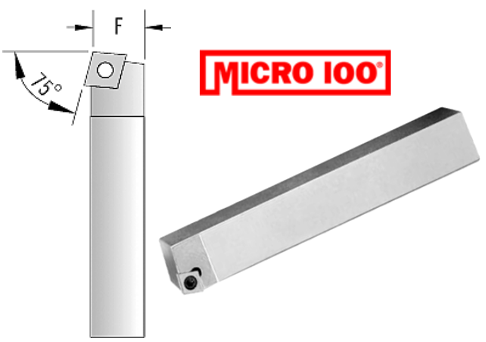

75° THRU-TURNING
Utilizing 100° Unused RH Cutting Corner
Uses CCMT 21.51 Inserts (not included) Prices are pulled from our database in real time. Press Add button to see product price.
75° THRU-TURNING TOOLS

Toolholder Nomenclature	Square Shank	OAL	F Over Insert	Part Number
SCBCR 0404 D2	1/4	2 1/2	.267	MI-103151 Add
SCBCR 0505 D2	5/16	2 1/2	.267	MI-103153 Add
SCBCR 0606 E2	3/8	2 3/4	.330	MI-103155 Add
SCBCR 0808 F2	1/2	3	.460	MI-103157 Add
SCBCR 1010 H2	5/8	4	.574	MI-103159 Add

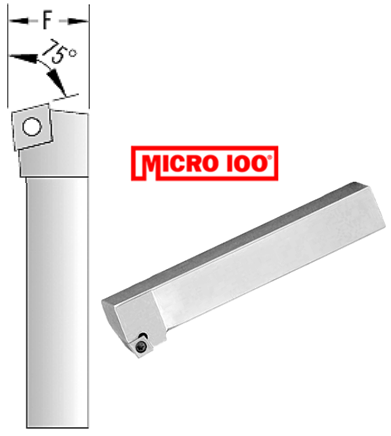

75° THRU-FACING
Utilizing 100° Unused LH Cutting Corner
Uses CCMT 21.51 Inserts (not included) Prices are pulled from our database in real time. Press Add button to see product price.
75° THRU-FACING TOOLS

Toolholder Nomenclature	Square Shank	OAL	F Over Insert	Part Number
SCKCR 0404 D2	1/4	2 1/2	.394	MI-103211 Add
SCKCR 0505 D2	5/16	2 1/2	.394	MI-103212 Add
SCKCR 0606 E2	3/8	2 3/4	.472	MI-103213 Add
SCKCR 0808 F2	1/2	3	.630	MI-103215 Add
SCKCR 1010 H2	5/8	4	.787	MI-103217 Add

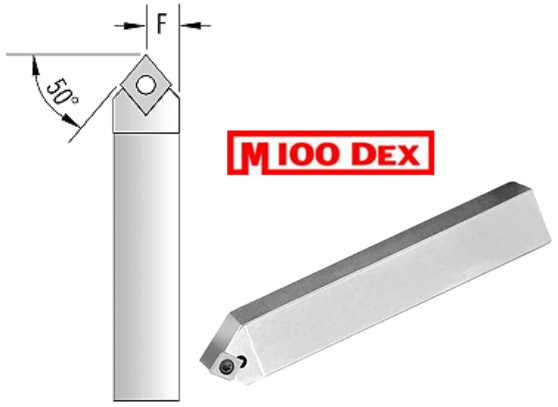

TURNING & CHAMFERING
50° Right Hand & Left Hand
Uses CCMT 21.51 Inserts (not included) Prices are pulled from our database in real time. Press Add button to see product price.
50° RH/LH TURNING & CHAMFERING TOOLS

Toolholder Nomenclature	Square Shank	OAL	F Over Insert	Part Number
SCMCN 0404 D2	1/4	2 1/2	.157	MI-103311 Add
SCMCN 0505 D2	5/16	2 1/2	.157	MI-103312 Add
SCMCN 0606 E2	3/8	2 3/4	.189	MI-103313 Add
SCMCN 0808 F2	1/2	3	.250	MI-103314 Add
SCMCN 1010 H2	5/8	4	.315	MI-103315 Add

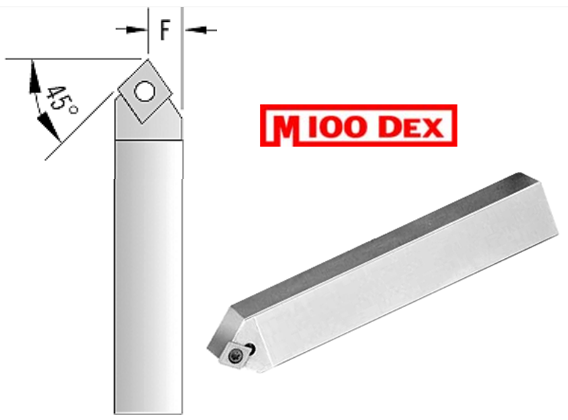

CHAMFERING
45° Right Hand & 55° Left Hand
Uses CCMT 21.51 Inserts (not included) Prices are pulled from our database in real time. Press Add button to see product price.
45° RH & 55° LH CHAMFERING TOOLS

Toolholder Nomenclature	Square Shank	OAL	F Over Insert	Part Number
SCSCR 0404 D2	1/4	2 1/2	.157	MI-103351 Add
SCSCR 0505 D2	5/16	2 1/2	.157	MI-103353 Add
SCSCR 0606 E2	3/8	2 3/4	.189	MI-103355 Add
SCSCR 0808 F2	1/2	3	.250	MI-103357 Add
SCSCR 1010 H2	5/8	4	.315	MI-103359 Add

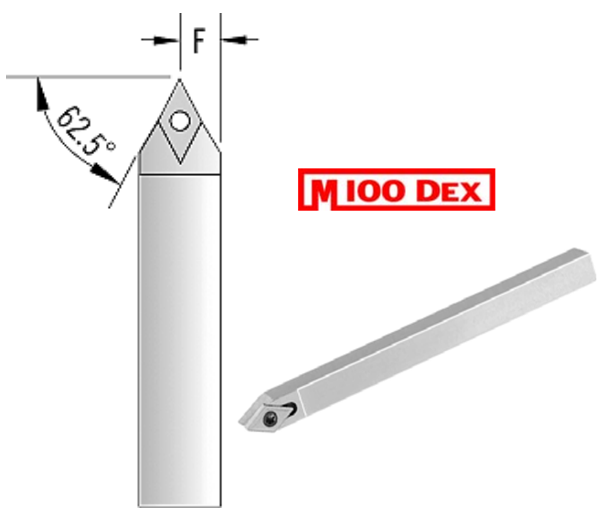

55° THREADING
“V” Turning
Uses DCMT 21.51 Inserts (not included) Prices are pulled from our database in real time. Press Add button to see product price.
55° THREADING TOOLS-”V” TURNING

Toolholder Nomenclature	Square Shank	OAL	F Over Insert	Part Number
SDNCN 0505 H2	5/16	4	.157	MI-103761 Add
SDNCN 0606 H2	3/8	4	.189	MI-103762 Add
SDNCN 0808 H2	1/2	4	.250	MI-103763 Add
SDNCN 1010 H2	5/8	4	.313	MI-103764 Add
