SWISS Style - OD Turning Holders -SDJCR/L, SSDCN, SVJCR/L, SWLCR/L,

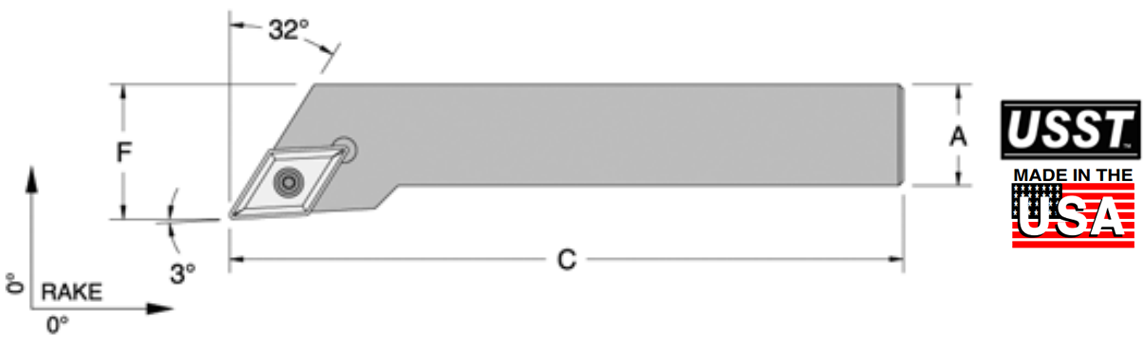

SDJCR/L

-3° Side Cutting, Offset Shank
11° Relief Angle, Screw Down
Using DCMT type inserts

Prices are pulled from our database in real time. Press Add button to see product price.

Industry Reference	Shank A	OAL C	F	Right Hand Model	Left Hand Model	Uses Inserts	Torx Key	Insert Screw
SDJCR/L L06-2J	3/8 SQ	3.5	0.500	TH-1530	TH-2530	DCMT-21.5	T-7	TS-25.45-6M1
SDJCR/L L08-2A	1/2 SQ	4.0	0.625	TH-1535	TH-2535	DCMT-21.5	T-7	TS-25.45-6M1
SDJCR/L L08-3A	1/2 SQ	4.0	0.625	TH-1540	TH-2540	DCMT-32.5	T-15	TS-4.7-10M1
SDJCR/L L10-3B	5/8 SQ	4.5	0.750	TH-1545	TH-2545	DCMT-32.5	T-15	TS-4.7-10M1
SDJCR/L L12-3B	3/4 SQ	4.5	1.000	TH-1550	TH-2550	DCMT-32.5	T-15	TS-4.7-10M1
SDJCR/L L16-3D	1 SQ	6.0	1.250	TH-1555	TH-2555	DCMT-32.5	T-15	TS-4.7-10M1

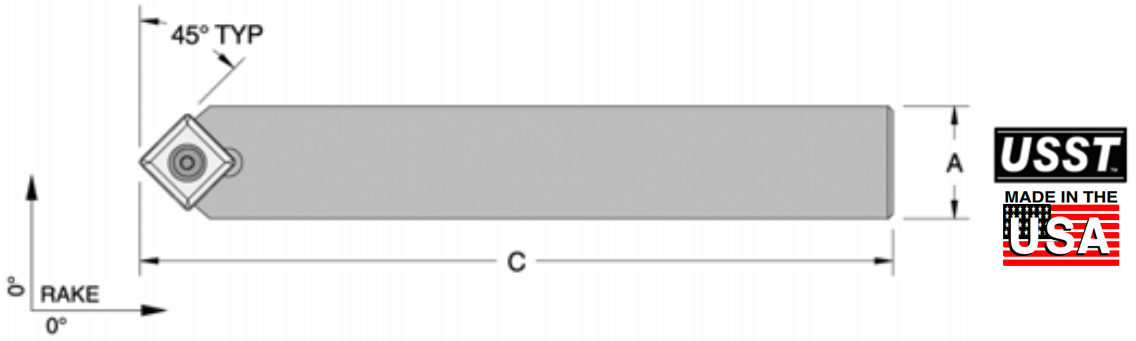

SSDCN

45° Side Cutting
Straight Shank
7° Relief Angle, S-Lock
Using SCMT type inserts

Prices are pulled from our database in real time. Press Add button to see product price.

Industry Reference	Shank A	OAL C	Neutral Hand Model	Uses Inserts	Torx Key	Insert Screw
SSDCN08-3A	1/2 SQ	4.0	TH-1560	SCMT-32.5	T-15	TS-4.7-10M1
SSDCN10-3B	5/8 SQ	4.5	TH-1565	SCMT-32.5	T-15	TS-4.7-10M1
SSDCN12-3B	3/4 SQ	4.5	TH-1570	SCMT-32.5	T-15	TS-4.7-10M1

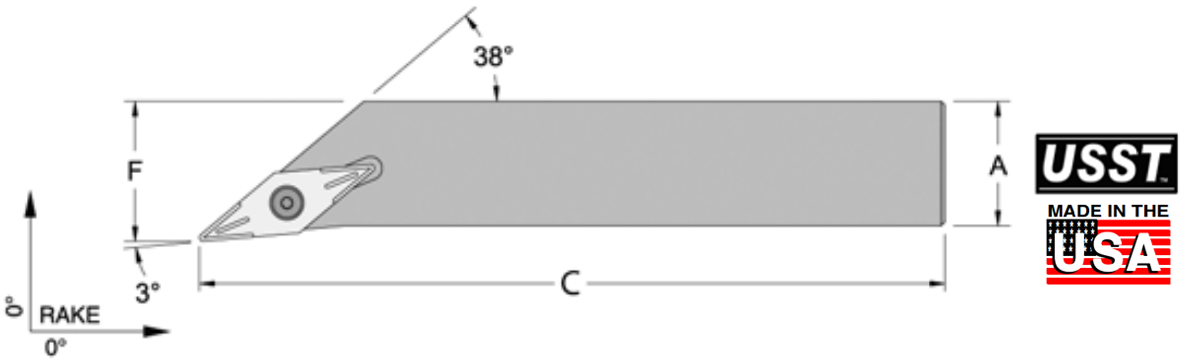

SVJCR/L

-3° Side Cutting
Offset Shank
5° Relief Angle, S-Lock
Using VCMT type inserts

Prices are pulled from our database in real time. Press Add button to see product price.

Industry Reference	Shank A	OAL C	F	Right Hand Model	Left Hand Model	Uses Inserts	Torx Key	Insert Screw
SVJCR/L L12-3B	3/4	4.5	1.00	TH-1575	TH-2575	VCMT-33	T-15	TS-4.7-10M1
SVJCR/L L16-3D	1	6.0	1.25	TH-1580	TH-2580	VCMT-33	T-15	TS-4.7-10M1
SVJCR/L L20-3D	1 1/4	6.0	1.50	TH-1585	TH-2585	VCMT-33	T-15	TS-4.7-10M1

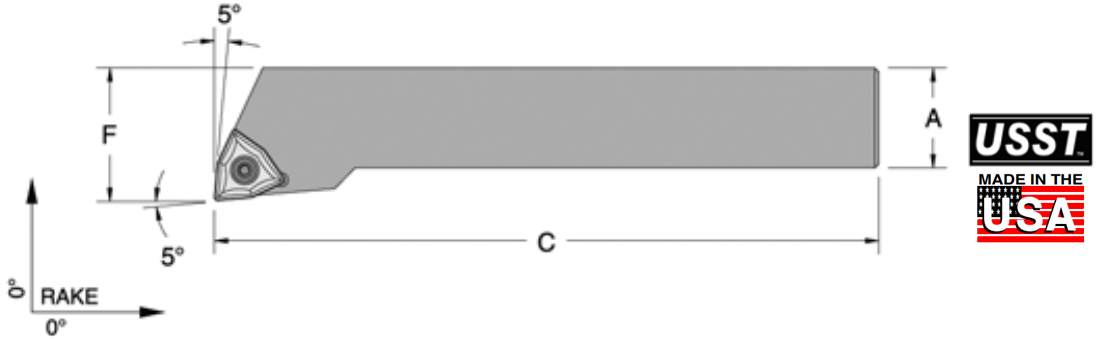

SWLCR/L

-5° Side & End Cutting
Offset Shank
7° Relief Angle, S-Lock
Using WCMT type inserts

Prices are pulled from our database in real time. Press Add button to see product price.

Industry Reference	Shank A	OAL C	F	Right Hand Model	Left Hand Model	Uses Inserts	Torx Key	Insert Screw
SWLCR/L L06-2J	3/8	3.5	0.500	TH-1605	TH-2605	WCMT-21.5	T-7	TS-25.45-6M1
SWLCR/L L08-3A	1/2	4.0	0.625	TH-1590	TH-2590	WCMT-32.5	T-15	TS-4.7-10M1
SWLCR/L L10-3B	5/8	4.5	0.750	TH-1595	TH-2595	WCMT-32.5	T-15	TS-4.7-10M1
SWLCR-L L12-3B	3/4	4.5	1.000	TH-1610	TH-2610	WCMT-32.5	T-15	TS-4.7-10M1
