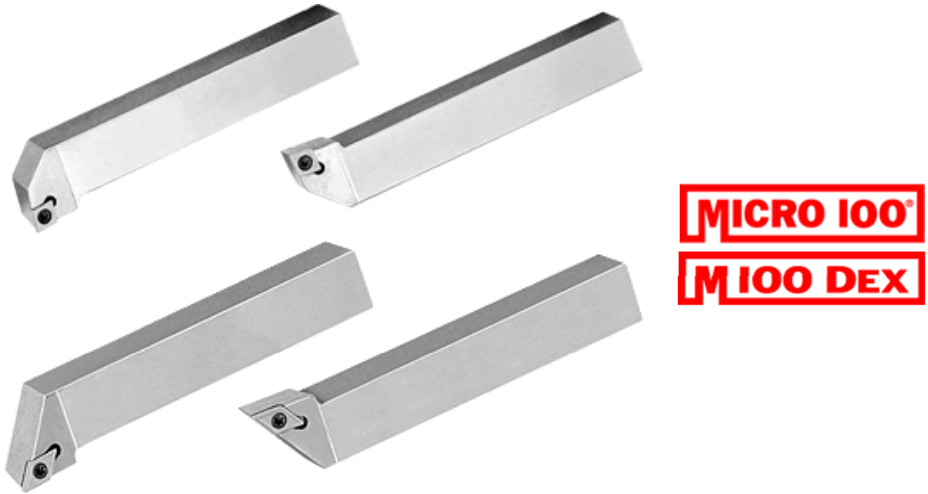

SWISS Style - OD Turning Holders - 90° & 60° TURNING & FACING TOOLS
TURNING & FACING TOOLS
FEATURES:
- Durable and unique chrome nickel toolholder
- Positive chip control
- Coolant-thru hole design
- Each holder includes torx screw and torx key
| 90° TURNING & FACING-95° APPROACH- Uses CCMT 21.51 Inserts (not included) | |||||
| Toolholder Nomenclature |
Square Shank |
OAL | F Over Insert |
Right Hand Part Number |
Left Hand Part Number |
| SCLCR/L 0404 D2 | 1/4 | 2 1/2 | .394 | MI-103231 | MI-103232 |
| SCLCR/L 0505 D2 | 5/16 | 2 1/2 | .394 | MI-103233 | MI-103234 |
| SCLCR/L 0606 E2 | 3/8 | 2 3/4 | .472 | MI-103235 | MI-103236 |
| SCLCR/L 0808 F2 | 1/2 | 3 | .629 | MI-103237 | MI-103238 |
| SCLCR/L 1010 H2 | 5/8 | 4 | .787 | MI-103241 | MI-103242 |
| 60° TURNING & FACING- Uses DCMT 21.51 Inserts (not included) | |||||
| SDJCR/L 0505 H2 | 5/16 | 4 | .394 | MI-103641 | MI-103642 |
| SDJCR/L 0606 H2 | 3/8 | 4 | .472 | MI-103651 | MI-103652 |
| SDJCR/L 0808 H2 | 1/2 | 4 | .629 | MI-103653 | MI-103654 |
| SDJCR/L 1010 H2 | 5/8 | 4 | .787 | MI-103615 | MI-103616 |
