Type B Bushing - (Inch OD - Inch ID)

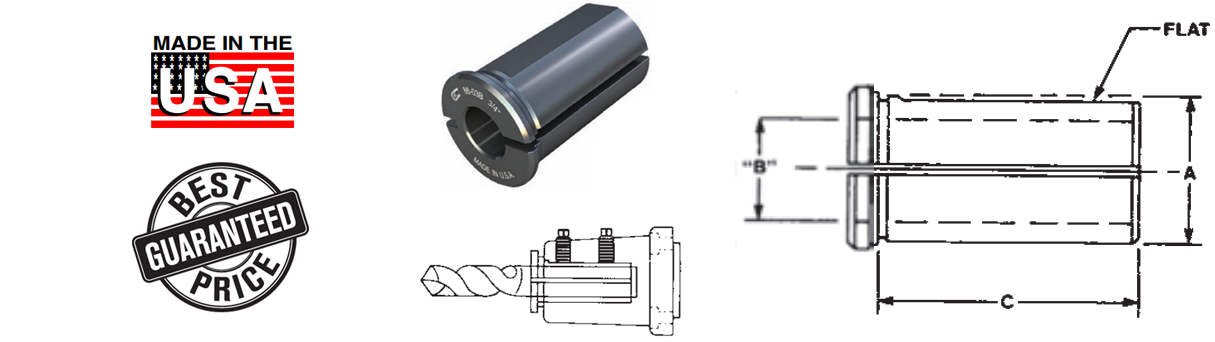

Toolholder Bushing Type “B”
These split Type B Bushings are manufactured with flexible manufacturing systems, for all Types and sizes of CNC Lathes and Chuckers; are Heat Treated and precision ground concentric. It is used to adapt Drills, Boring Bars, and other Shank Tools.

Type B Bushings Also Available In: Click Here

  • Inch OD – Metric ID
  • Metric OD – Inch ID
  • Metric OD – Metric ID
Special Bore Sizes Available. Call for Quote
Prices are pulled from our database in real time. Press Add button to see product price.
Bushing
OD
Length
Under Head
Bushing
ID
Part Number
A C B
3/4" 1-1/2" 1/4" CNC 86-01B 1/4"
5/16" CNC 86-01B 5/16"
3/8" CNC 86-01B 3/8"
1/2" CNC 86-01B 1/2"
1" 1-3/4" 3/8" CNC 86-02B 3/8"
1/2" CNC 86-02B 1/2"
5/8" CNC 86-02B 5/8"
3/4" CNC 86-02B 3/4"
1-1/4" 2-1/8" 3/8" CNC 86-12B 3/8"
1/2" CNC 86-12B 1/2"
5/8" CNC 86-12B 5/8"
3/4" CNC 86-12B 3/4"
7/8" CNC 86-12B 7/8"
1" CNC 86-12B 1"
1-1/2" 2-1/2" 3/8" CNC 86-03B 3/8"
1/2" CNC 86-03B 1/2"
5/8" CNC 86-03B 5/8"
3/4" CNC 86-03B 3/4"
7/8" CNC 86-03B 7/8"
1" CNC 86-03B 1"
1-1/4" CNC 86-03B 1-1/4"
1-3/4" 3" 1/2" CNC 86-04B 1/2"
5/8" CNC 86-04B 5/8"
3/4" CNC 86-04B 3/4"
7/8" CNC 86-04B 7/8"
1" CNC 86-04B 1"
1-1/4" CNC 86-04B 1-1/4"
1-1/2" CNC 86-04B 1-1/2"
2" 3-1/2" 1/2" CNC 86-05B 1/2"
5/8" CNC 86-05B 5/8"
3/4" CNC 86-05B 3/4"
7/8" CNC 86-05B 7/8"
1" CNC 86-05B 1"
1-1/4" CNC 86-05B 1-1/4"
1-1/2" CNC 86-05B 1-1/2"
1-3/4" CNC 86-05B 1-3/4"
2-1/2" 4" 1/2" CNC 86-06B 1/2"
5/8" CNC 86-06B 5/8"
3/4" CNC 86-06B 3/4"
7/8" CNC 86-06B 7/8"
1" CNC 86-06B 1"
1-1/4" CNC 86-06B 1-1/4"
1-1/2" CNC 86-06B 1-1/2"
1-3/4" CNC 86-06B 1-3/4"
2" CNC 86-06B 2"
2-1/4" CNC 86-06B 2-1/4"
3" 4-1/2" 1" CNC 86-07B 1"
1-1/4" CNC 86-07B 1-1/4"
1-1/2" CNC 86-07B 1-1/2"
1-3/4" CNC 86-07B 1-3/4"
2" CNC 86-07B 2"
2-1/4" CNC 86-07B 2-1/4"
2-1/2" CNC 86-07B 2-1/2"
3-1/2" 5-1/4" 1" CNC 86-08B 1"
1-1/4" CNC 86-08B 1-1/4"
1-1/2" CNC 86-08B 1-1/2"
1-3/4" CNC 86-08B 1-3/4"
2" CNC 86-08B 2"
2-1/4" CNC 86-08B 2-1/4"
2-1/2" CNC 86-08B 2-1/2"
3" CNC 86-08B 3"
