VDI Chart For Your Machine

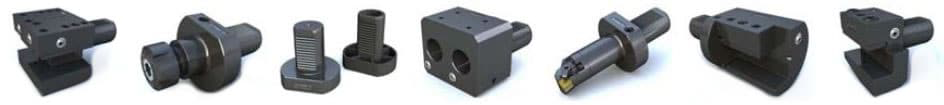

Exact Tooling carries a complete line of Static CNC Lathe VDI Toolholders made to DIN 69880 standards.
All VDI Tool Holders are made to ISO 9001/2000 specifications.
Available in All Metric VDI Shank Sizes: 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm & 80mm.
Holds Standard Inch Size Tooling; Metric Available Upon Request.
Made in the USA.
VDI is a Quick Change Toolholding System.
VDI Provides a fast and accurate way of affixing tools to the Turret; Tool Changes are performed in seconds. Toolholders can be Preset. A Cam Operated Clamping System.
Complete line of Live Tooling & Live Tooling Repair available. Contact Us for more info.
Nakamura Style VDI Also available.

Key Benefits

Guaranteed: Not to fail for one full year or we will replace it for Free!
Also Available in 16mm & 80mm VDI Shanks! Please note that the 80mm VDI Shank VDI Tool Holders are “Made to Order” – with a Delivery of 5 Weeks – these items are not returnable due to the Special nature of this VDI Shank size.

Machine Make & Model	VDI Shank Size	OD Holders Part Number	Facing Holders Part Number	ID Holders & Collet Chucks Part Numbers
Haas SL10	30mm	22. 3025 24. 3025 26. 3025 28. 3025	32. 3025 34. 3025	51. 30xx (ID) 52. 30xx (ID) 53. 30xx (ID)
Haas SL 20, 30 & 40 Haas ST10	40mm	22. 4025 24. 4025 26. 4025 28. 4025	32. 4025 34. 4025	51. 40xx (ID) 52. 40xx (ID) 53. 40xx (ID)
Okuma LB15	40mm	21. 4025 23. 4025 25. 4025 27. 4025	31. 4025 33. 4025	52. 40xx (ID) 53. 40xx (ID)
Okuma LB35	50mm	22. 5032 24. 5032 26. 5032 28. 5032	32. 5032 34. 5032	51. 50xx (ID) 52. 50xx (ID) 54. 50xx (ID) 53. 50xx (ID)
Okuma LB45	60mm	22. 6032 26. 6032 28. 6032	32. 6032 34. 6032	51. 60xx (ID) 52. 60xx (ID) 53. 60xx (ID) 54. 60xx (ID)
Clausing	30mm	21. 3025 23. 3025 25. 3025 27. 3025	31. 3025 33. 3025	51. 30xx (ID) 52. 30xx (ID) 53. 30xx (ID)
Hardinge	40mm	21.4025 23.4025 25.4025 27.4025	31. 4025 33. 4025	51. 40xx (ID) 52. 40xx (ID) 53. 40xx (ID)
Daewoo Puma	30mm	21.3025 23.3025 25. 3025 27. 3025	31. 3025 33. 3025	51. 30xx (ID) 52. 30xx (ID) 53. 30xx (ID)
Monarch Predator	30mm	21. 3025 23. 3025 25. 3025 27. 3025	31. 3025 33. 3025	51. 30xx (ID) 52. 30xx (ID) 53. 30xx (ID)
