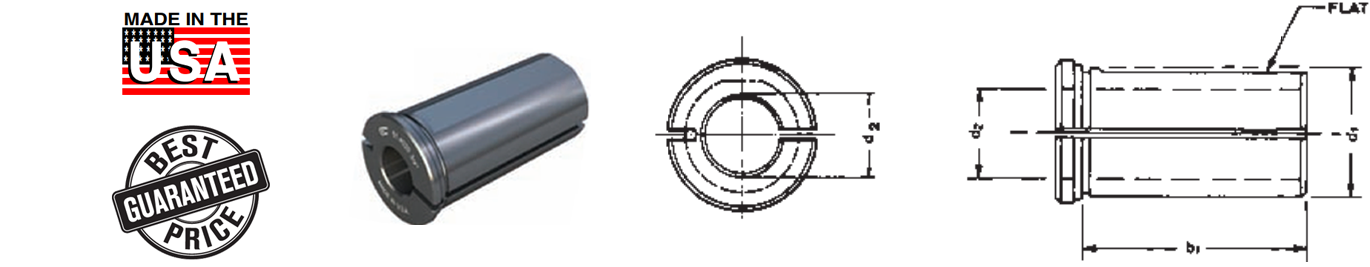

VDI Style "BV" Toolholder Bushings - (Metric ID)

VDI Style Toolholder Bushing
Type “BV”

VDI Style "BV" Toolholder Bushings Also Available In: Click Here

  • Metric OD – Inch ID
Bushing
OD
Length
Under Head
Bushing
ID
Part Number Price
d1 b1 d2
25mm 36mm 8mm CNC86 61.2508M
$64.00
10mm CNC86 61.2510M
12mm CNC86 61.2512M
16mm CNC86 61.2516M
20mm CNC86 61.2520M
32mm 46mm 8mm CNC86 61.3208M
$53.00
10mm CNC86 61.3210M
12mm CNC86 61.3212M
16mm CNC86 61.3216M
20mm CNC86 61.3220M
25mm CNC86 61.3225M
40mm 81mm 10mm CNC86 61.4010M
$55.00
12mm CNC86 61.4012M
16mm CNC86 61.4016M
20mm CNC86 61.4020M
25mm CNC86 61.4025M
32mm CNC86 61.4032M
50mm 102mm 20mm CNC86 61.5020M
$69.00
25mm CNC86 61.5025M
32mm CNC86 61.5032M
40mm CNC86 61.5040M
60mm 118mm 25mm CNC86 61.6025M
$83.00
32mm CNC86 61.6032M
40mm CNC86 61.6040M
50mm CNC86 61.6050M
