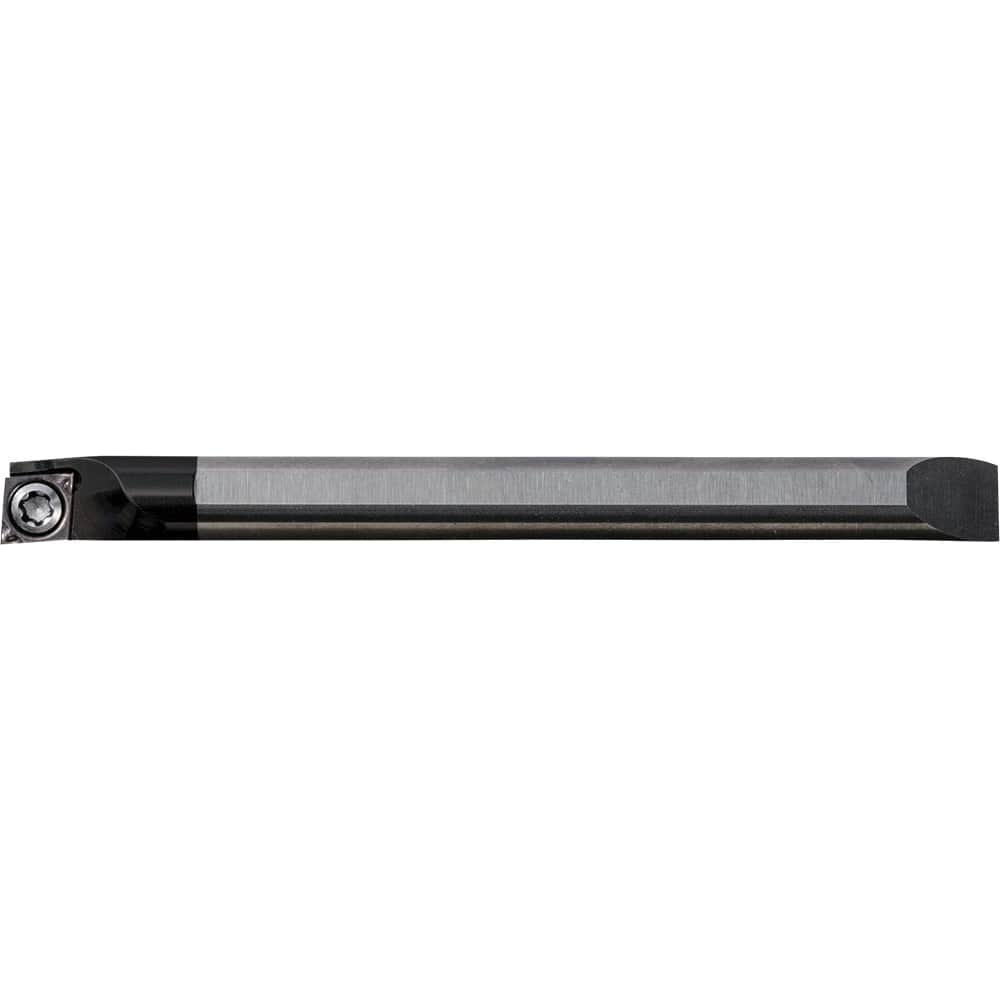

Kyocera - 8mm Min Bore, 0.4055" Max Depth, Right Hand S...SCLC Indexable Boring Bar
Item #: 00007559
Brand: Kyocera
Model #: 8859987
Product Specifications
| Toolholder Style | S...SCLC |
| Series | EZB |
| Minimum Bore Diameter (mm) | 8.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 0.4055 |
| Overall Length (Decimal Inch) | 2.37800 |
| Shank Diameter (mm) | 7.0000 |
| Insert Compatibility | CCGT1411?; CCET1411?; CCGW1411?; CCMW1411? |
| Through Coolant | No |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 4.00 |
| Insert Thickness (Decimal Inch) | 0.0709 |
| Insert Inscribed Circle (Decimal Inch) | 0.1693 |
| Rake Angle | -11 (Radial);0 (Axial) |
| Toolholder Material | Steel |
