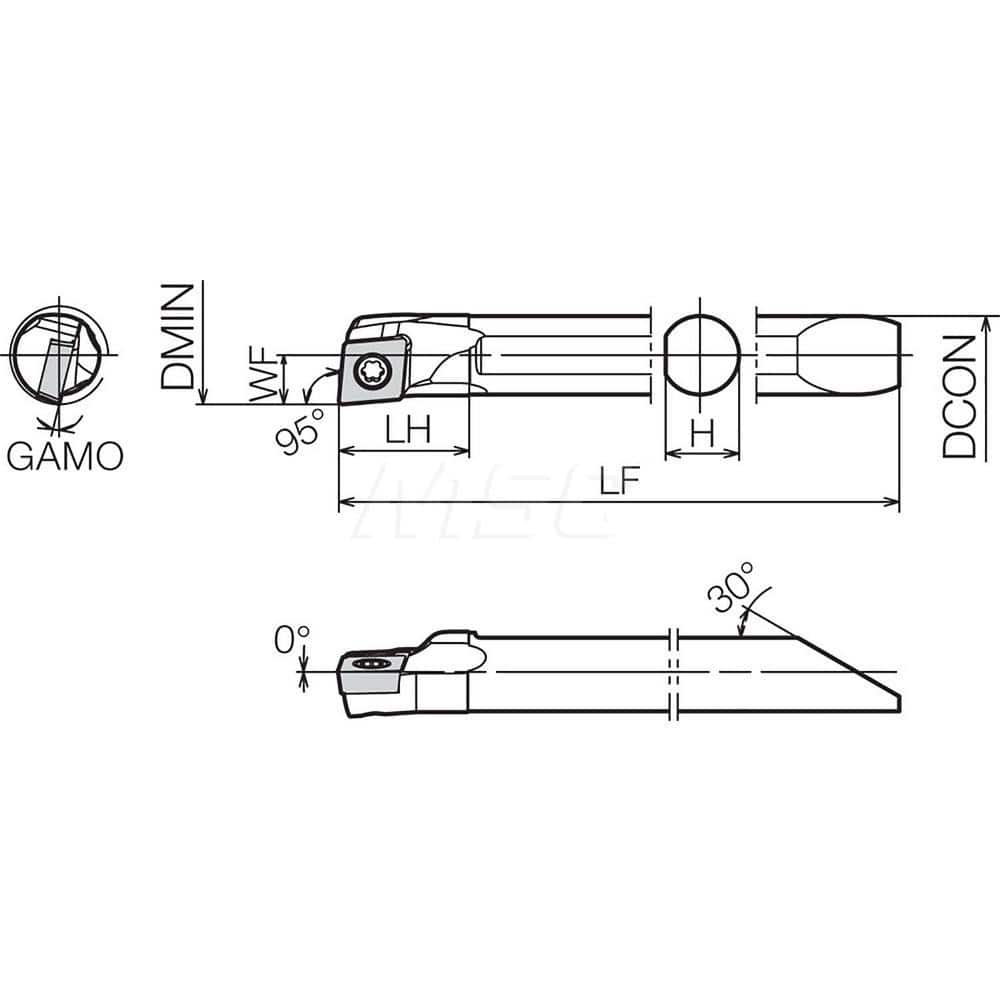

Indexable Boring Bar: S080XSCLCR06100EZP, 10.00 mm Min Bore, 8.00 mm Shank Dia, N/A Steel Screw, Uses CCGT215 ™, CCMT215 ™, CCET215 ™, CCGW215 ™ & CCMW215 ™ Inserts
Item #: 00007591
Brand: Kyocera
Model #: THC14605
Product Specifications
| Minimum Bore Diameter (mm) | 10.00 |
| Maximum Bore Depth (mm) | 24.00 |
| Toolholder Style | S...SCLC |
| Tool Material | Steel |
| Insert Compatibility | CCGT215?; CCGW215?; CCET215?; CCMT215?; CCMW215? |
| Shank Diameter (mm) | 8.00 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 69.50 |
| Insert Holding Method | Screw |
| Series | EZB |
| Multi-use Tool | No |
| Center to Cutting Edge (mm) | 5.00 |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Manufacturers Catalog Number | S080XSCLCR06100EZP |
| Manufacturer's Part Number | S080XSCLCR06100EZP |
| Coolant Through | No |
