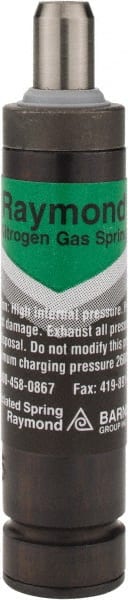

Associated Spring Raymond - 12mm Diam, 25mm Max Stroke, Blue Nitrogen Gas Spring Cylinder - 65mm Body Length, 92mm OAL, 81 Lb Full Stroke Spring Force, 1,560 psi Initial Charge
Item #: 00015149
Brand: Associated Spring Raymond
Model #: R12-025 BL
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Diameter (mm) | 12.0000 |
| Diameter (Decimal Inch) | 0.4720 |
| Maximum Stroke (Decimal Inch) | 0.980 |
| Maximum Stroke (mm) | 25.00 |
| Spring Force Full Stroke | 81 |
| Spring Force Initial | 56 |
| Body Length (Decimal Inch) | 2.5600 |
| Body Length (mm) | 65.000 |
| Overall Length (mm) | 92.0000 |
| Overall Length (Decimal Inch) | 3.6200 |
| Initial Charge Pressure | 1560 (psi) |
| Color | Blue |
