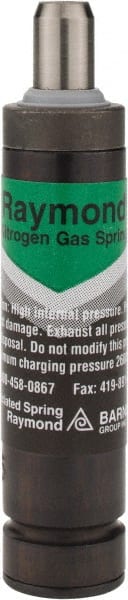

Associated Spring Raymond - 12mm Diam, 38mm Max Stroke, Blue Nitrogen Gas Spring Cylinder - 78mm Body Length, 118mm OAL, 81 Lb Full Stroke Spring Force, 1,560 psi Initial Charge
Item #: 00015156
Brand: Associated Spring Raymond
Model #: R12-038 BL
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Diameter (mm) | 12.0000 |
| Diameter (Decimal Inch) | 0.4720 |
| Maximum Stroke (Decimal Inch) | 1.500 |
| Maximum Stroke (mm) | 38.00 |
| Spring Force Full Stroke | 81 |
| Spring Force Initial | 56 |
| Body Length (Decimal Inch) | 3.0700 |
| Body Length (mm) | 78.000 |
| Overall Length (mm) | 118.0000 |
| Overall Length (Decimal Inch) | 4.6500 |
| Initial Charge Pressure | 1560 (psi) |
| Color | Blue |
