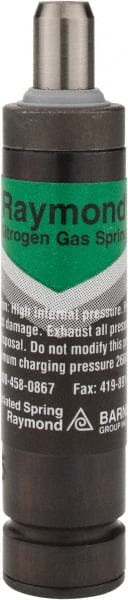

Associated Spring Raymond - 12mm Diam, 7mm Max Stroke, Red Nitrogen Gas Spring Cylinder - 47mm Body Length, 56mm OAL, 121 Lb Full Stroke Spring Force, 2,100 psi Initial Charge
Item #: 00015180
Brand: Associated Spring Raymond
Model #: R12-007 RE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Diameter (mm) | 12.0000 |
| Diameter (Decimal Inch) | 0.4720 |
| Maximum Stroke (Decimal Inch) | 0.280 |
| Maximum Stroke (mm) | 7.00 |
| Spring Force Full Stroke | 121 |
| Spring Force Initial | 85 |
| Body Length (Decimal Inch) | 1.8500 |
| Body Length (mm) | 47.000 |
| Overall Length (mm) | 56.0000 |
| Overall Length (Decimal Inch) | 2.2000 |
| Initial Charge Pressure | 2100 (psi) |
| Color | Red |
