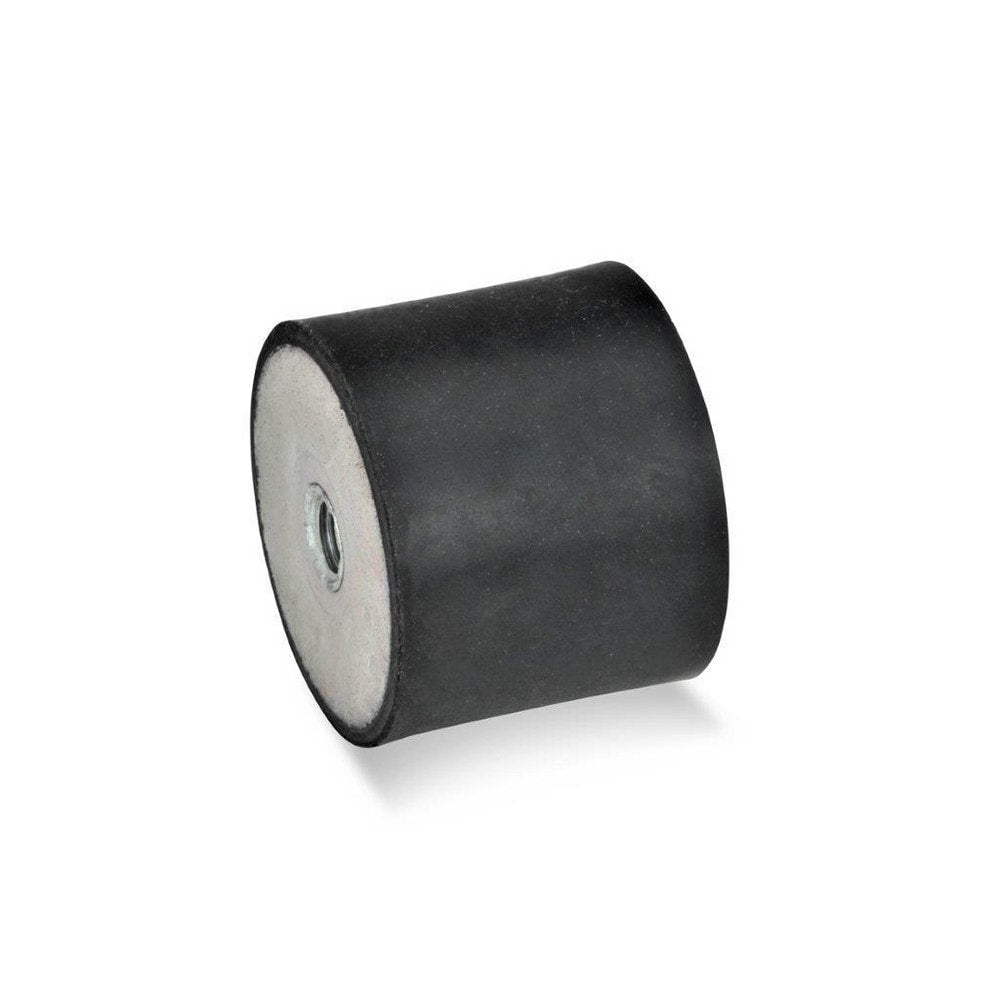

Vibration Isolators; Isolator Type: Plate/Plate; Insert Material: Zinc-Plated Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 930.00 N; Top Diameter: 30.00; Bottom Diameter: 30; Thread Size: M8x1.25; Overall Width: 30 mm
Item #: 67921890
Brand: J.W. Winco
Model #: 351-30-40-M8-EE-55
Product Specifications
| Isolator Type | Plate/Plate |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 930.00 N |
| Top Diameter | 30.00 |
| Bottom Diameter | 30 |
| Thread Size | M8x1.25 |
| Overall Width | 30 mm |
| Overall Diameter | 30 mm |
| Deflection | 0.3900 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 8.0000 |
| Thread Pitch | 1.25 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 40 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Plate |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 930.00 N |
| Top Diameter | 30.00 |
| Bottom Diameter | 30 |
| Thread Size | M8x1.25 |
| Overall Width | 30 mm |
| Overall Diameter | 30 mm |
| Deflection | 0.3900 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 8.0000 |
| Thread Pitch | 1.25 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 40 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 67921890 |
| Mfr Part # | 351-30-40-M8-EE-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
