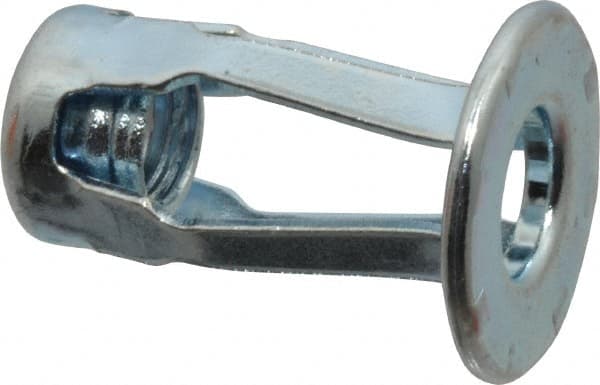

RivetKing - 1/4-20 UNC Thread, Clear Zinc Plated, Steel, Screwdriver Installed Rivet Nut - 1/4 to 0.35" Grip, 5/8" Flange Diam, 29/32" Long
Item #: 00070086
Brand: RivetKing
Model #: JK-0602
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size (Inch) | 1/4-20 |
| Minimum Grip (Decimal Inch) | 0.2500 |
| Minimum Grip (Inch) | 1/4 |
| Maximum Grip (Decimal Inch) | 0.3500 |
| Flange Diameter (Decimal Inch) | 0.6250 |
| Flange Thickness (Decimal Inch) | 0.0730 |
| Overall Length (Decimal Inch) | 0.9060 |
| Material | Steel |
| Finish/Coating | Clear; Zinc-Plated |
| Body Diameter (Decimal Inch) | 0.4380 |
| Thread Standard | UNC |
