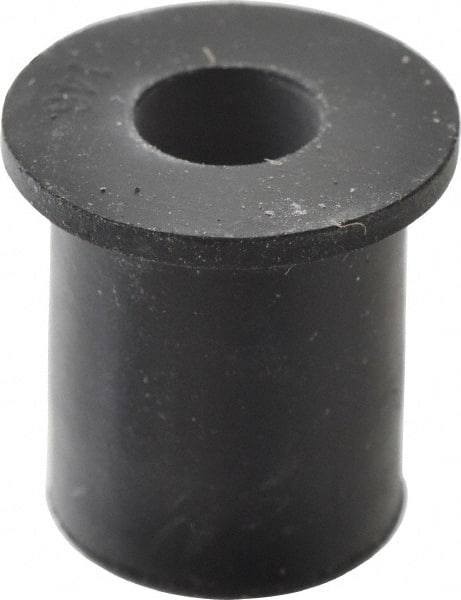

RivetKing - 1/4-20, 0.63" Diam x 0.051" Thick Flange, Rubber Insulated Rivet Nut - UNC Thread, Rubber, 1/2" Body Diam, 0.63" OAL
Item #: 00075192
Brand: RivetKing
Model #: JF-6150
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size (Inch) | 1/4-20 |
| Body Diameter (Decimal Inch) | 0.5000 |
| Flange Diameter (Decimal Inch) | 0.6300 |
| Overall Length (Decimal Inch) | 0.6300 |
| Minimum Grip (Decimal Inch) | 0.0160 |
| Maximum Grip (Decimal Inch) | 0.1100 |
| Flange Thickness (Decimal Inch) | 0.0510 |
| Nut Material | Brass |
| Body Material | Rubber |
| Thread Standard | UNC |
