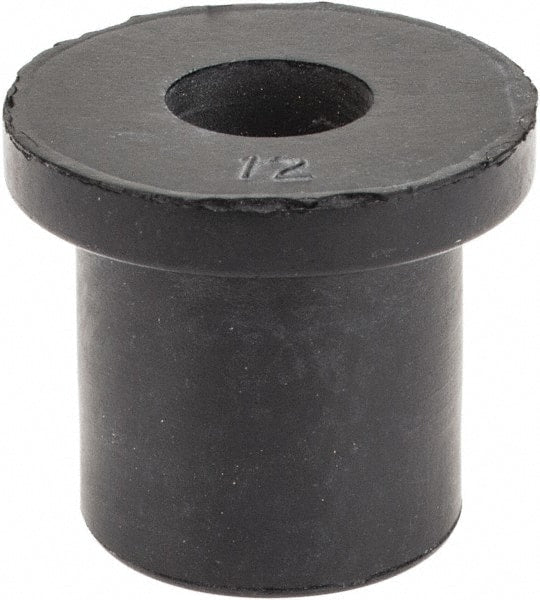

RivetKing - 5/16-18, 7/8" Diam x 1/8" Thick Flange, Rubber Insulated Rivet Nut - UNC Thread, Rubber, 9/16" Body Diam, 0.725" OAL
Item #: 00075226
Brand: RivetKing
Model #: JF-8200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size (Inch) | 5/16-18 |
| Body Diameter (Decimal Inch) | 0.5620 |
| Flange Diameter (Decimal Inch) | 0.8750 |
| Overall Length (Decimal Inch) | 0.7250 |
| Minimum Grip (Decimal Inch) | 0.0160 |
| Maximum Grip (Decimal Inch) | 0.1560 |
| Flange Thickness (Decimal Inch) | 0.1250 |
| Nut Material | Brass |
| Body Material | Rubber |
| Thread Standard | UNC |
