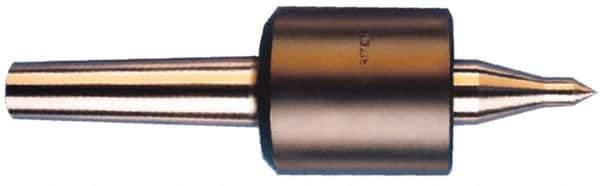

Riten - MT2 Taper Shank, 1-3/4" Head Diam 4,600 Lb Capacity Live Center - 5,000 Max RPM, 2-3/8" Head Length, 7/8" Point Diam, 1-1/8" Point Len, 880 Lb Max Workpc, Standard Point
Item #: 00090118
Brand: Riten
Model #: 51602
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 880.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 7/8 |
| Point Diameter (Decimal Inch) | 0.8750 |
| Point Length (Inch) | 1-1/8 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 4600.00 |
| Head Diameter (Inch) | 1-3/4 |
| Head Length (Inch) | 2-3/8 |
| Gage Line Clearance (Inch) | 3/8 |
| Included Angle | 60.00 |
| Bearing Type | Quad Bearing |
| Maximum RPM | 5000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
