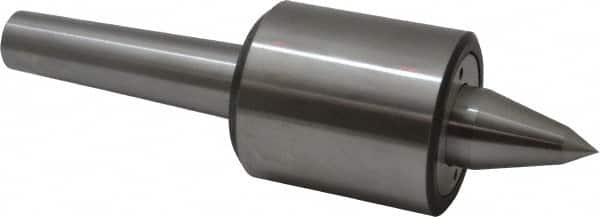

Riten - MT4 Taper Shank, 2-7/8" Head Diam 9,000 Lb Capacity Live Center - 5,500 Max RPM, 3-5/16" Head Length, 9/16" Point Diam, 2-1/16" Point Len, 1,700 Lb Max Workpc, Tracer Point
Item #: 00090183
Brand: Riten
Model #: 51904
Exact Tooling IR#: 04
Features and Benefits
Tracer points, also known as CNC points, are used with large workpieces in CNC and manual turning operations.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1700.00 |
| Point Style | Tracer |
| Point Diameter (Inch) | 9/16 |
| Point Diameter (Decimal Inch) | 0.5625 |
| Point Length (Inch) | 2-1/16 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 9000.00 |
| Head Diameter (Inch) | 2-7/8 |
| Head Length (Inch) | 3-5/16 |
| Gage Line Clearance (Inch) | 3/8 |
| Included Angle | 30.00 |
| Bearing Type | Quad Bearing |
| Maximum RPM | 5500 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
