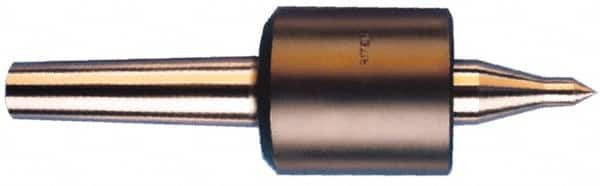

Riten - MT3 Taper Shank, 1-3/4" Head Diam 4,600 Lb Capacity Live Center - 5,000 Max RPM, 2-3/8" Head Length, 3/8" Point Diam, 2" Point Len, 310 Lb Max Workpc, 3/4" Tip Diam, Long Point
Item #: 00090241
Brand: Riten
Model #: 51103
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 310.00 |
| Point Style | Long |
| Point Diameter (Inch) | 3/8 |
| Point Diameter (Decimal Inch) | 0.3750 |
| Tip Diameter (Inch) | 3/4 |
| Point Length (Inch) | 2 |
| Point Length (Decimal Inch) | 2.0000 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 4600.00 |
| Head Diameter (Inch) | 1-3/4 |
| Head Length (Inch) | 2-3/8 |
| Gage Line Clearance (Inch) | 3/8 |
| Included Angle | 30.00 |
| Bearing Type | Quad Bearing |
| Maximum RPM | 5000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
