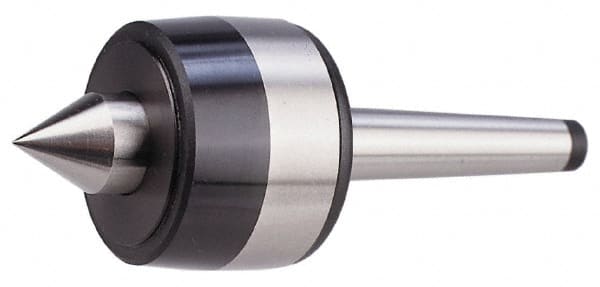

Bison - MT4 Taper Shank, 2.52" Head Diam 1,850 Lb Capacity Live Center - 3,000 Max RPM, 1.1" Point Diam, 1.24" Point Len, 1,850 Lb Max Workpc, 7.24" OAL, 1.24" Long Tip, Standard Point
Item #: 00091041
Brand: Bison
Model #: 7-565-004
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1850.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 1.1000 |
| Point Length (Decimal Inch) | 1.2400 |
| Accuracy (Decimal Inch) | 0.000300 |
| Tip Length (Decimal Inch) | 1.2400 |
| Load Capacity (Lb.) | 1850.00 |
| Head Diameter (Decimal Inch) | 2.5200 |
| Overall Length (Decimal Inch) | 7.2400 |
| Point to Gauge Line (Decimal Inch) | 3.2100 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 3000 |
| Material | Steel |
| Carbide-Tipped | No |
