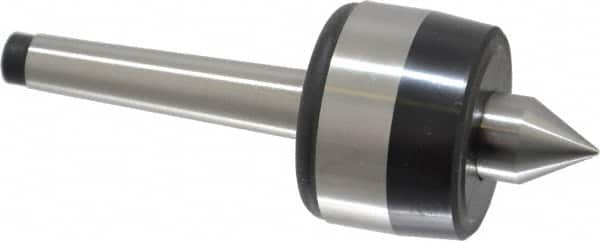

Bison - MT1 Taper Shank, 1-1/2" Head Diam 220 Lb Capacity Live Center - 5,000 Max RPM, 0.59" Point Diam, 0.7" Point Len, 220 Lb Max Workpc, 4.07" OAL, 0.7" Long Tip, Standard Point
Item #: 00091215
Brand: Bison
Model #: 7-565-101
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT1 |
| Maximum Workpiece Weight (Lb.) | 220.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 0.5900 |
| Point Length (Decimal Inch) | 0.7000 |
| Accuracy (Decimal Inch) | 0.000200 |
| Tip Length (Decimal Inch) | 0.7000 |
| Load Capacity (Lb.) | 220.00 |
| Head Diameter (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 4.0700 |
| Point to Gauge Line (Decimal Inch) | 1.9700 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 5000 |
| Material | Steel |
| Carbide-Tipped | No |
