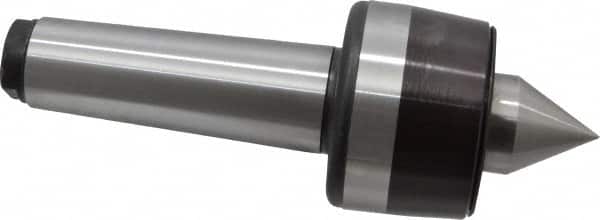

Bison - MT5 Taper Shank, 3.35" Head Diam 4,400 Lb Capacity Live Center - 2,500 Max RPM, 1.61" Point Diam, 1.77" Point Len, 4,400 Lb Max Workpc, 9.33" OAL, 1.77" Long Tip, Standard Point
Item #: 00091256
Brand: Bison
Model #: 7-565-105
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 4400.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 1.6100 |
| Point Length (Decimal Inch) | 1.7700 |
| Accuracy (Decimal Inch) | 0.000200 |
| Tip Length (Decimal Inch) | 1.7700 |
| Load Capacity (Lb.) | 4400.00 |
| Head Diameter (Decimal Inch) | 3.3500 |
| Overall Length (Decimal Inch) | 9.3300 |
| Point to Gauge Line (Decimal Inch) | 4.2300 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 2500 |
| Material | Steel |
| Carbide-Tipped | No |
