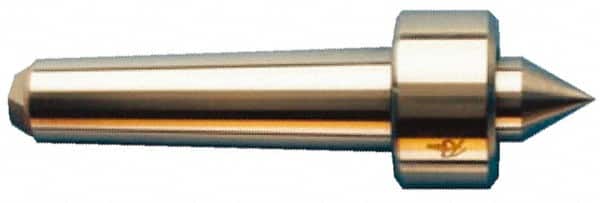

Riten - Straight Shank, 2-1/8" Head Diam 6,750 Lb Capacity Live Center - 1,000 Max RPM, 1-3/16" Long Case, 1" Point Diam, 1" Point Len, 1,800 Lb Max Workpiece, Standard Point
Item #: 00091546
Brand: Riten
Model #: 12305
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Straight Shank |
| Taper Size | Straight |
| Shank Diameter (Inch) | 1-1/4 |
| Maximum Workpiece Weight (Lb.) | 1800.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1 |
| Point Diameter (Decimal Inch) | 1.0000 |
| Point Length (Inch) | 1 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 6750.00 |
| Head Diameter (Inch) | 2-1/8 |
| Head Length (Inch) | 1-3/16 |
| Gage Line Clearance (Inch) | 5 |
| Included Angle | 60.00 |
| Maximum RPM | 1000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
