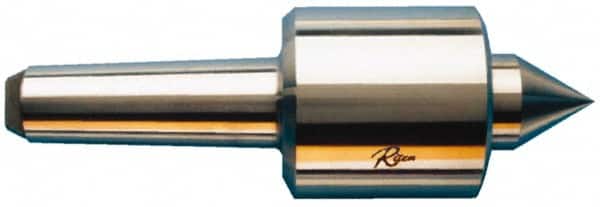

Riten - MT4 Taper Shank, 2-7/8" Head Diam 9,000 Lb Capacity Live Center - 4,200 Max RPM, 3-3/16" Head Length, 1-1/8" Point Diam, 2" Point Len, 2,200 Lb Max Workpc, Standard Point
Item #: 00093203
Brand: Riten
Model #: 34164
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 2200.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1-1/8 |
| Point Diameter (Decimal Inch) | 1.1250 |
| Point Length (Inch) | 2 |
| Accuracy (Decimal Inch) | 0.000100 |
| Load Capacity (Lb.) | 9000.00 |
| Head Diameter (Inch) | 2-7/8 |
| Head Length (Inch) | 3-3/16 |
| Gage Line Clearance (Inch) | 1/2 |
| Included Angle | 60.00 |
| Bearing Type | Quad Bearing |
| Maximum RPM | 4200 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
