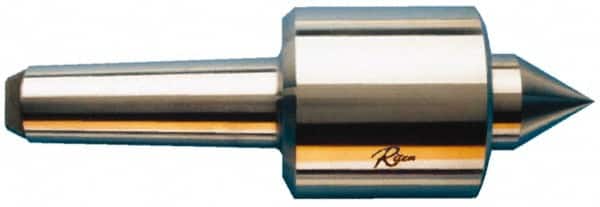

Riten - MT5 Taper Shank, 4-5/8" Head Diam 30,000 Lb Capacity Live Center - 3,000 Max RPM, 3-27/32" Head Length, 2" Point Diam, 2-1/4" Point Len, 12,000 Lb Max Workpc, Standard Point
Item #: 00093252
Brand: Riten
Model #: 55105
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 12000.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 2 |
| Point Diameter (Decimal Inch) | 2.0000 |
| Point Length (Inch) | 2-1/4 |
| Point Length (Decimal Inch) | 2.2500 |
| Accuracy (Decimal Inch) | 0.000100 |
| Load Capacity (Lb.) | 30000.00 |
| Head Diameter (Inch) | 4-5/8 |
| Head Length (Inch) | 3-27/32 |
| Gage Line Clearance (Inch) | 1/2 |
| Included Angle | 60.00 |
| Bearing Type | Quad Bearing |
| Maximum RPM | 3000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
