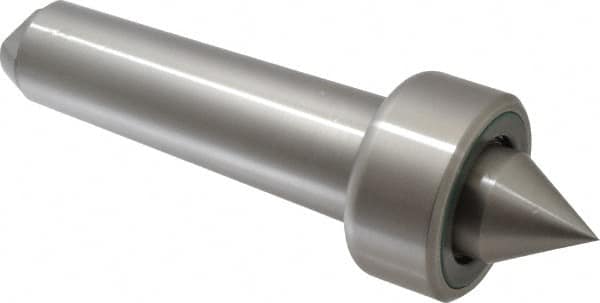

Riten - MT5 Taper Shank, 2-13/16" Head Diam 9,400 Lb Capacity Live Center - 1,000 Max RPM, 1-13/32" Head Length, 1-1/2" Point Diam, 1-1/2" Point Len, 3,800 Lb Max Workpc, Standard Point
Item #: 00093450
Brand: Riten
Model #: 12105
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 3800.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1-1/2 |
| Point Diameter (Decimal Inch) | 1.5000 |
| Point Length (Inch) | 1-1/2 |
| Point Length (Decimal Inch) | 1.5000 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 9400.00 |
| Head Diameter (Inch) | 2-13/16 |
| Head Length (Inch) | 1-13/32 |
| Gage Line Clearance (Inch) | 1/4 |
| Included Angle | 60.00 |
| Maximum RPM | 1000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
