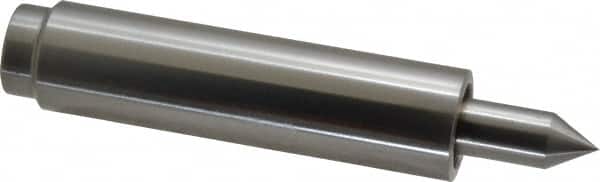

Concentric - Straight Shank, Live Center - 3,000 Max RPM, 0.378" Point Diam, 0.88" Point Len, 274 Lb Max Workpiece, Standard Point
Item #: 00094029
Brand: Concentric
Model #: 17302
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Straight Shank |
| Taper Size | Straight |
| Shank Diameter (Inch) | 3/4 |
| Maximum Workpiece Weight (Lb.) | 274.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 0.3780 |
| Point Length (Decimal Inch) | 0.8800 |
| Accuracy (Decimal Inch) | 0.000100 |
| Thrust Load (Lb.) | 173.00 |
| Point to Gauge Line (Decimal Inch) | 1.3800 |
| Included Angle | 60.00 |
| Maximum RPM | 3000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
