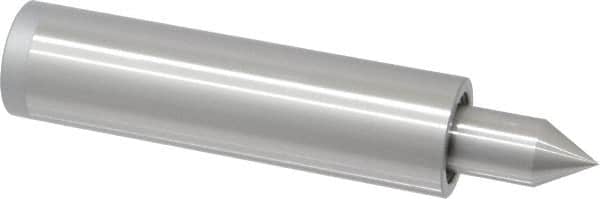

Concentric - Straight Shank, Live Center - 2,000 Max RPM, 0.558" Point Diam, 1.16" Point Len, 400 Lb Max Workpiece, Standard Point
Item #: 00094037
Brand: Concentric
Model #: 17303
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Straight Shank |
| Taper Size | Straight |
| Shank Diameter (Inch) | 1 |
| Maximum Workpiece Weight (Lb.) | 400.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 0.5580 |
| Point Length (Decimal Inch) | 1.1600 |
| Accuracy (Decimal Inch) | 0.000100 |
| Thrust Load (Lb.) | 235.00 |
| Point to Gauge Line (Decimal Inch) | 1.6900 |
| Included Angle | 60.00 |
| Maximum RPM | 2000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
