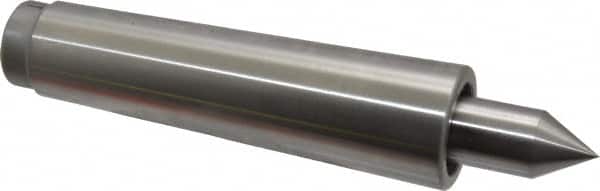

Concentric - MT4 Taper Shank, 2,500 Lb Capacity Live Center - 2,000 Max RPM, 0.686" Point Diam, 1.38" Point Len, 960 Lb Max Workpc, Standard Point
Item #: 00094649
Brand: Concentric
Model #: 17104
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 960.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 0.6860 |
| Point Length (Decimal Inch) | 1.3800 |
| Accuracy (Decimal Inch) | 0.000100 |
| Load Capacity (Lb.) | 2500.00 |
| Thrust Load (Lb.) | 780.00 |
| Point to Gauge Line (Decimal Inch) | 2.3800 |
| Included Angle | 60.00 |
| Maximum RPM | 2000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
