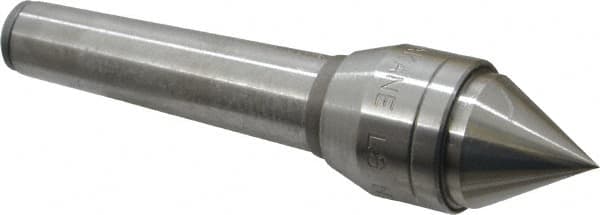

Value Collection - MT2 Taper Shank, 1.09" Head Diam Live Center - 0.945" Point Diam, 0.91" Point Len, 440 Lb Max Workpc, 4.73" OAL, Standard Point
Item #: 00095323
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 440.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 0.9450 |
| Point Length (Decimal Inch) | 0.9100 |
| Head Diameter (Decimal Inch) | 1.0900 |
| Shank Length (Inch) | 4-51/64 |
| Overall Length (Decimal Inch) | 4.7300 |
| Included Angle | 60.00 |
| Material | Steel |
| Carbide-Tipped | No |
