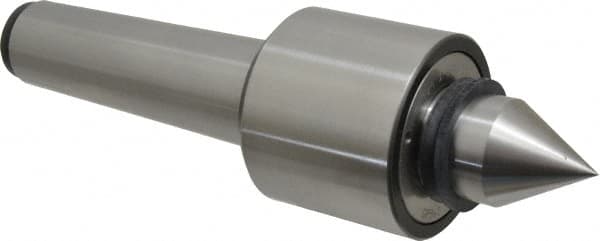

Riten - MT5 Taper Shank, 3-1/8" Head Diam 6,800 Lb Capacity Live Center - 4,000 Max RPM, 2-7/16" Head Length, 1-9/16" Point Diam, 2-3/8" Point Len, 2,900 Lb Max Workpc, Standard Point
Item #: 00097857
Brand: Riten
Model #: 14605
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 2900.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1-9/16 |
| Point Diameter (Decimal Inch) | 1.5625 |
| Point Length (Inch) | 2-3/8 |
| Point Length (Decimal Inch) | 2.3750 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 6800.00 |
| Head Diameter (Inch) | 3-1/8 |
| Head Length (Inch) | 2-7/16 |
| Gage Line Clearance (Inch) | 3/8 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 4000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
