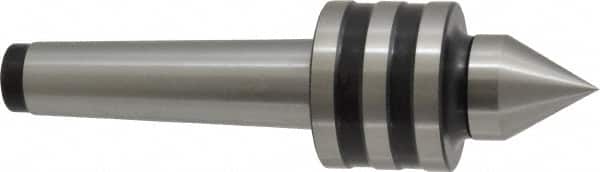

Interstate - MT3 Taper Shank, 1-47/64" Head Diam 858 Lb Capacity Live Center - 1-11/32" Head Length, 1-1/16" Point Diam, 1.4531" Point Len, 650 Lb Max Workpc, 6-1/4" OAL, Standard Point
Item #: 00098137
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 650.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1-1/16 |
| Point Diameter (Decimal Inch) | 1.0625 |
| Point Length (Inch) | 1.4531 |
| Accuracy (Decimal Inch) | 0.000200 |
| Load Capacity (Lb.) | 858.00 |
| Head Diameter (Inch) | 1-47/64 |
| Head Length (Inch) | 1-11/32 |
| Shank Length (Inch) | 3-15/32 |
| Overall Length (Inch) | 6-1/4 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Material | Steel |
| Carbide-Tipped | No |
