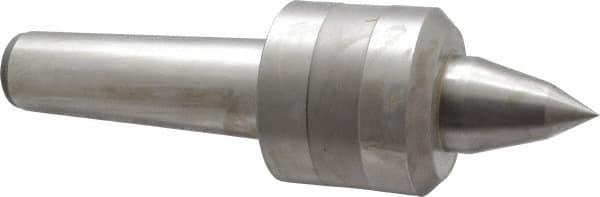

Value Collection - MT5 Taper Shank, 3.1" Head Diam Live Center - 2-3/4" Head Length, 1.575" Point Diam, 2-1/2" Point Len, 1,763 Lb Max Workpc, 10.6" OAL, Long Point
Item #: 00098251
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 1763.00 |
| Point Style | Long |
| Point Diameter (Decimal Inch) | 1.5750 |
| Point Length (Decimal Inch) | 2.5000 |
| Head Diameter (Decimal Inch) | 3.1000 |
| Head Length (Decimal Inch) | 2.7500 |
| Shank Length (Decimal Inch) | 5.3500 |
| Overall Length (Decimal Inch) | 10.6000 |
| Included Angle | 60.00 |
| Material | Steel |
| Carbide-Tipped | No |
