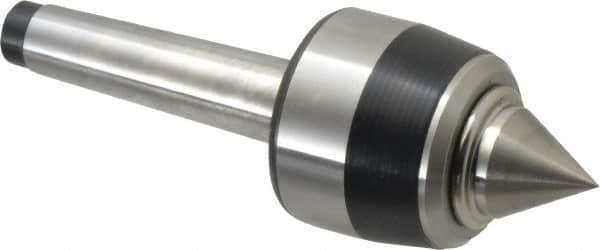

Royal Products - MT2 Taper Shank, 1-3/4" Head Diam 3,085 Lb Capacity Live Center - 6,000 Max RPM, 1.47" Head Length, 7/8" Point Diam, 1.01" Point Len, 725 Lb Max Workpc, 5-9/32" OAL, Standard Point
Item #: 00099127
Brand: Royal Products
Model #: 10102
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 725.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 7/8 |
| Point Diameter (Decimal Inch) | 0.8750 |
| Point Length (Decimal Inch) | 1.0100 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 3085.00 |
| Thrust Load (Lb.) | 2360.00 |
| Radial Load (Lb.) | 725.00 |
| Head Diameter (Decimal Inch) | 1.7500 |
| Head Diameter (Inch) | 1-3/4 |
| Head Length (Decimal Inch) | 1.4700 |
| Shank Length (Inch) | 2-13/16 |
| Shank Length (Decimal Inch) | 2.8125 |
| Overall Length (Inch) | 5-9/32 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 6000 |
| Material | Steel |
| Carbide-Tipped | No |
