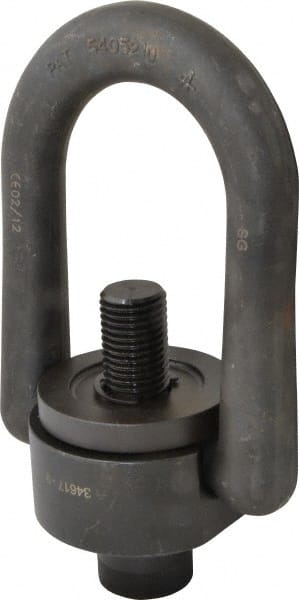

American Drill Bushing - 15,000 Lbs. Load Capacity, 6.75 Inch Wide x 9.22 Inch High x 3.74 Inch Opening, Extra Duty Center Pull Hoist Ring
Item #: 00099416
Brand: American Drill Bushing
Model #: 33402
Product Specifications
| Type | Center Pull Hoist Ring |
| Load Capacity (Lb.) | 15000 |
| Thread Size | 1-1/4-7 |
| Ring Height (Decimal Inch) | 9.22 |
| Ring Width (Decimal Inch) | 6.750 |
| Ring Width (Inch) | 6.750 |
| Ring Opening (Decimal Inch) | 3.74 |
| Ring Opening (Inch) | 3.74 |
| Thread Torque | 470.0 |
| Radius (Decimal Inch) | 2.00 |
| Mounting Surface Diameter (Decimal Inch) | 3.88 |
| Pin Length (Decimal Inch) | 1.25 |
| Chuck Height | 2.870 |
