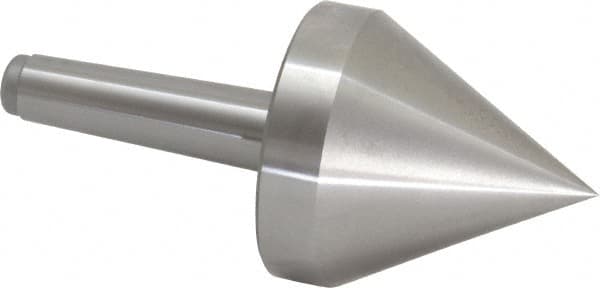

Royal Products - MT3 Taper Shank, 3-5/32" Head Diam 2,255 Lb Capacity Live Center - 5,000 Max RPM, 3-3/8" Head Length, 1" Point Diam, 3.39" Point Len, 475 Lb Max Workpc, 6-15/16" OAL, Pipe Nose Point
Item #: 00100222
Brand: Royal Products
Model #: 10702
Exact Tooling IR#: 04
Features and Benefits
Pipe nose points are used for for turning pipes, tubes, and parts with extra-large center holes.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 475.00 |
| Point Style | Pipe Nose |
| Point Diameter (Inch) | 1 |
| Point Diameter (Decimal Inch) | 1.0000 |
| Point Length (Decimal Inch) | 3.3900 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 2255.00 |
| Thrust Load (Lb.) | 1780.00 |
| Radial Load (Lb.) | 475.00 |
| Head Diameter (Decimal Inch) | 3.1563 |
| Head Diameter (Inch) | 3-5/32 |
| Head Length (Inch) | 3-3/8 |
| Shank Length (Decimal Inch) | 3.1900 |
| Overall Length (Inch) | 6-15/16 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 5000 |
| Material | Steel |
| Carbide-Tipped | No |
