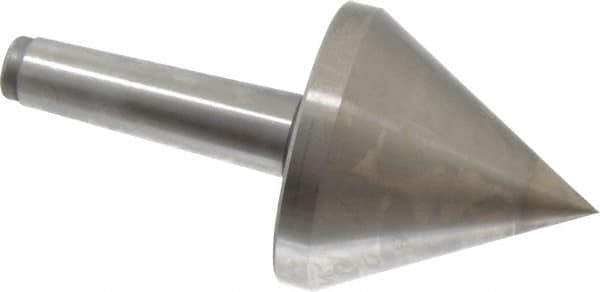

Royal Products - MT4 Taper Shank, 4-5/32" Head Diam 3,180 Lb Capacity Live Center - 4,500 Max RPM, 4-1/8" Head Length, 1-1/4" Point Diam, 4-1/8" Point Len, 630 Lb Max Workpc, 8-11/16" OAL, Pipe Nose Point
Item #: 00100248
Brand: Royal Products
Model #: 10704
Exact Tooling IR#: 04
Features and Benefits
Pipe nose points are used for for turning pipes, tubes, and parts with extra-large center holes.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 630.00 |
| Point Style | Pipe Nose |
| Point Diameter (Inch) | 1-1/4 |
| Point Diameter (Decimal Inch) | 1.2500 |
| Point Length (Inch) | 4-1/8 |
| Point Length (Decimal Inch) | 4.1250 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 3180.00 |
| Thrust Load (Lb.) | 2550.00 |
| Radial Load (Lb.) | 630.00 |
| Head Diameter (Decimal Inch) | 4.1563 |
| Head Diameter (Inch) | 4-5/32 |
| Head Length (Inch) | 4-1/8 |
| Shank Length (Decimal Inch) | 4.0600 |
| Overall Length (Inch) | 8-11/16 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 4500 |
| Material | Steel |
| Carbide-Tipped | No |
