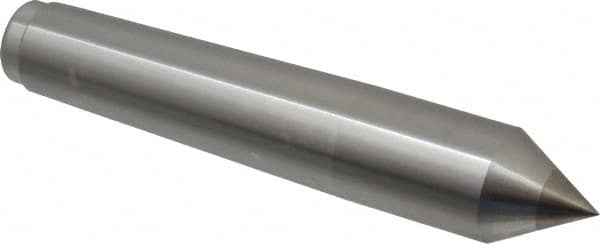

Royal Products - 0.938" Head Diam, Carbide-Tipped Steel Standard Point Solid Dead Center - 3MT Morse Taper, 0.938" Point Diam, 5-1/4" OAL
Item #: 00100438
Brand: Royal Products
Model #: 11022
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Center Type | Solid Center |
| Shank Type | Morse Taper |
| Shank Taper Size | 3MT |
| Point Style | Standard Point |
| Carbide-Tipped | Yes |
| Head Diameter (Decimal Inch) | 0.9380 |
| Point Diameter (Decimal Inch) | 0.9380 |
| Tip Diameter (Decimal Inch) | 0.5000 |
| Taper Length (Decimal Inch) | 3.1900 |
| Overall Length (Inch) | 5-1/4 |
| Overall Length (Decimal Inch) | 5.2500 |
| Point to Gauge Line (Decimal Inch) | 2.0600 |
| Included Angle | 60.00 |
