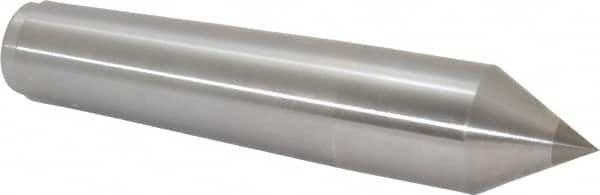

Royal Products - 1.748" Head Diam, Carbide-Tipped Steel Standard Point Solid Dead Center - 5MT Morse Taper, 1.748" Point Diam, 8-1/2" OAL
Item #: 00100453
Brand: Royal Products
Model #: 11042
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Center Type | Solid Center |
| Shank Type | Morse Taper |
| Shank Taper Size | 5MT |
| Point Style | Standard Point |
| Carbide-Tipped | Yes |
| Head Diameter (Decimal Inch) | 1.7480 |
| Point Diameter (Decimal Inch) | 1.7480 |
| Tip Diameter (Decimal Inch) | 0.6300 |
| Taper Length (Decimal Inch) | 5.1900 |
| Overall Length (Inch) | 8-1/2 |
| Overall Length (Decimal Inch) | 8.5000 |
| Point to Gauge Line (Decimal Inch) | 3.3100 |
| Included Angle | 60.00 |
