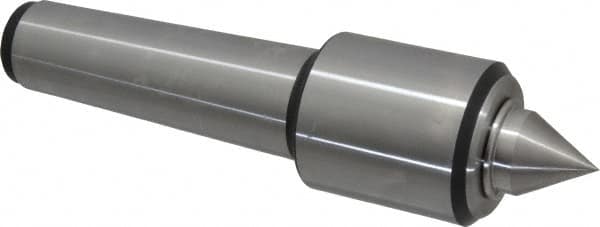

Royal Products - MT5 Taper Shank, 2.45" Head Diam 4,390 Lb Capacity Live Center - 5,000 Max RPM, 2.78" Head Length, 1-1/4" Point Diam, 1.47" Point Len, 2,240 Lb Max Workpc, 9-3/4" OAL, 1/2" Tip Diam, Standard Point
Item #: 00101956
Brand: Royal Products
Model #: 10415
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 2240.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1-1/4 |
| Point Diameter (Decimal Inch) | 1.2500 |
| Tip Diameter (Inch) | 1/2 |
| Point Length (Decimal Inch) | 1.4700 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 4390.00 |
| Thrust Load (Lb.) | 2150.00 |
| Radial Load (Lb.) | 2240.00 |
| Head Diameter (Decimal Inch) | 2.4500 |
| Head Length (Decimal Inch) | 2.7800 |
| Shank Length (Decimal Inch) | 5.5625 |
| Overall Length (Inch) | 9-3/4 |
| Included Angle | 60.00 |
| Bearing Type | Quad Bearing |
| Maximum RPM | 5000 |
| Material | Steel |
| Carbide-Tipped | No |
