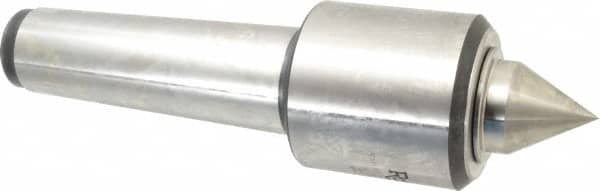

Royal Products - MT6 HD Taper Shank, 3.82" Head Diam 5,300 & 10,540 Lb Capacity Live Center - 3,000 Max RPM, 3.89" Head Length, 2" Point Diam, 2.31" Point Len, 5,240 Lb Max Workpc, 14" OAL, Standard Point
Item #: 00102160
Brand: Royal Products
Model #: 10446
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT6 HD |
| Maximum Workpiece Weight (Lb.) | 5240.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 2 |
| Point Diameter (Decimal Inch) | 2.0000 |
| Point Length (Decimal Inch) | 2.3100 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 5300.00; 10540.00 |
| Thrust Load (Lb.) | 5300.00 |
| Radial Load (Lb.) | 5240.00 |
| Head Diameter (Decimal Inch) | 3.8200 |
| Head Length (Decimal Inch) | 3.8900 |
| Shank Length (Decimal Inch) | 7.7500 |
| Overall Length (Inch) | 14 |
| Included Angle | 60.00 |
| Bearing Type | Quad Bearing |
| Maximum RPM | 3000 |
| Material | Steel |
| Carbide-Tipped | No |
