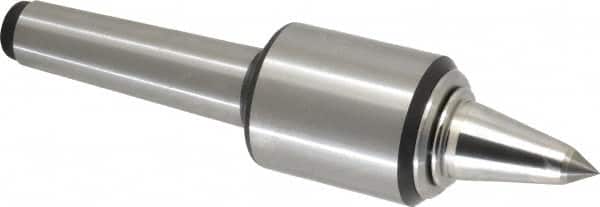

Royal Products - MT3 Taper Shank, 1.7" Head Diam 830 Lb Capacity Carbide Tipped Live Center - 12,000 Max RPM, 2.12" Head Length, 7/8" Point Diam, 1-3/4" Point Len, 180 Lb Max Workpc, 7-23/32" OAL, 3/8" Tip Diam, Long Point
Item #: 00102632
Brand: Royal Products
Model #: 10693
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 180.00 |
| Point Style | Long |
| Point Diameter (Inch) | 7/8 |
| Point Diameter (Decimal Inch) | 0.8750 |
| Tip Diameter (Inch) | 3/8 |
| Tip Diameter (Decimal Inch) | 0.3750 |
| Point Length (Inch) | 1-3/4 |
| Point Length (Decimal Inch) | 1.7500 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 830.00 |
| Thrust Load (Lb.) | 650.00 |
| Radial Load (Lb.) | 180.00 |
| Head Diameter (Decimal Inch) | 1.7000 |
| Head Length (Decimal Inch) | 2.1200 |
| Shank Length (Decimal Inch) | 3.4375 |
| Overall Length (Inch) | 7-23/32 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 12000 |
| Material | Steel |
| Carbide-Tipped | Yes |
