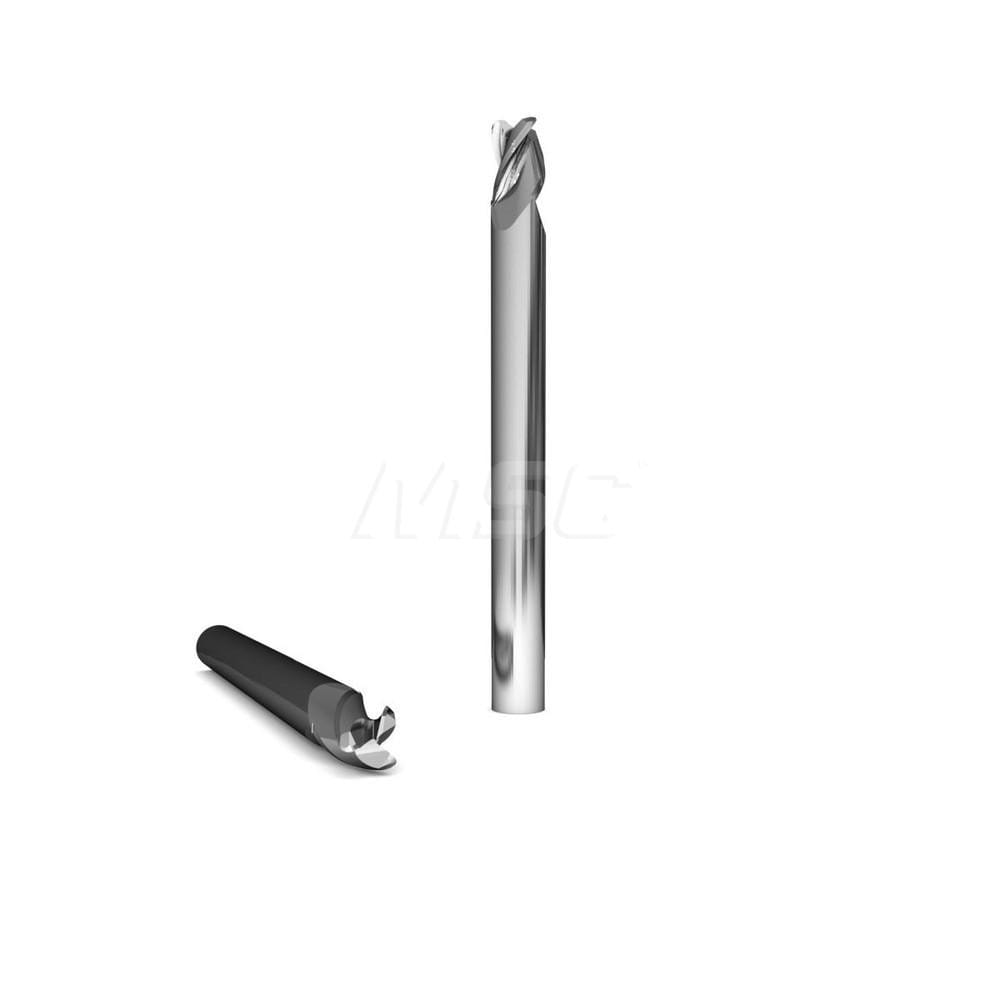

Corner Radius End Mill: 3/4″ Dia, 1″ LOC, 0.03″ Radius, 3 Flutes, Solid Carbide 6″ OAL, 3/4″ Shank Dia, 37 ° Helix, ZrN Coated, Corner Radius End, Centercutting, Series 2032
Item #: 00110155
Brand: GWS
Model #: 315671
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 1 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Radius |
| Flute Type | Upcut |
| Helix Angle | 37 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/4 |
| Reach Length (Inch) | 3-3/8 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Single Or Double End | Single |
| Manufacturers Catalog Number | 35075016NS54030C5 |
| Coating/Finish | ZrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
