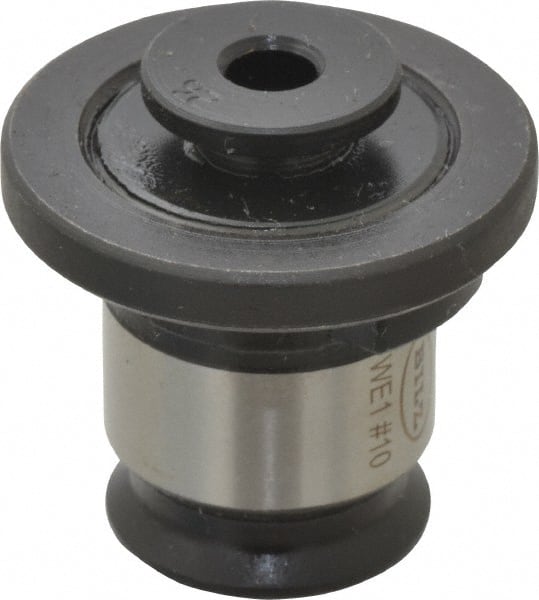

Bilz - 0.194" Tap Shank Diam, 0.152" Tap Square Size, 3/16", #10 Tap, #1 Tapping Adapter - 0.2756" Projection, 0.669" Tap Depth, 1.1221" OAL, 3/4" Shank OD, Through Coolant, Series WE 1
Item #: 00191528
Brand: Bilz
Model #: 21100038
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tap Size (mm) | M4.5; M5 |
| Tap Size (Inch) | 3/16; #10 |
| Adapter Size | 1 |
| Tap Shank Diameter (Decimal Inch) | 0.1940 |
| Tap Square Size (Decimal Inch) | 0.1520 |
| Quick Change | Yes |
| Projection (mm) | 7.00 |
| Projection (Decimal Inch) | 0.2756 |
| Tap Depth (mm) | 16.99 |
| Tap Depth (Decimal Inch) | 0.6690 |
| Series | WE 1 |
| Overall Length (mm) | 28.50 |
| Overall Length (Decimal Inch) | 1.1221 |
| Flange Diameter (mm) | 30.00 |
| Flange Diameter (Decimal Inch) | 1.1810 |
| Outside Shank Diameter (mm) | 19.00 |
| Outside Shank Diameter (Decimal Inch) | 0.7480 |
| Through Coolant | Yes |
| PSC Code | 5136 |
