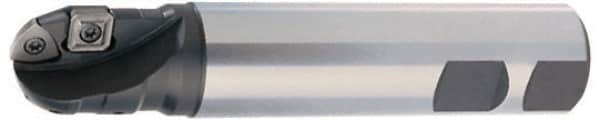

Kennametal - 1-1/4" Cut Diam, 1.19" Max Depth of Cut, 1-1/4" Shank Diam, 5.12" OAL, Indexable Ball Nose End Mill - 1.73" Head Length, Straight Shank, 4.347 Toolholder, SPGX 0903AP, WPGX 07T312.160 Insert
Item #: 00283192
Brand: Kennametal
Model #: 1244354
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 1.1900 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Ball Nose Inserts Used on Toolholder | 4 |
| Insert Style | SPGX 0903AP; WPGX 07T312.160 |
| Toolholder Style | 4.347 |
| Overall Length (Decimal Inch) | 5.1200 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Tapered Neck | No |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.7300 |
| Number of Side Inserts Used on Toolholder | 1 |
