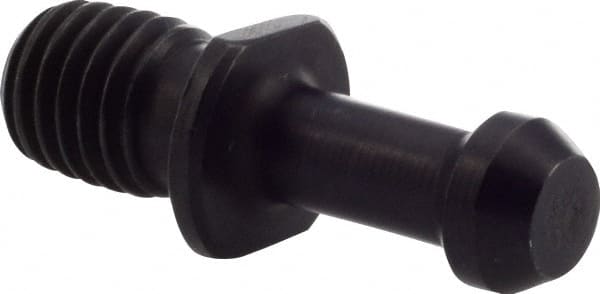

Kennametal - BT40 Taper, 5/8-11 Thread, 45° Angle Radius, Standard Retention Knob - 2-1/8" OAL, 0.588" Knob Diam, 1.266" from Knob to Flange
Item #: 00286021
Brand: Kennametal
Model #: 1026730
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | BT40 |
| Thread Size | 5/8-11 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 0.5880 |
| Through Coolant | No |
| Neck Diameter (Decimal Inch) | 0.3920 |
| Overall Length (Decimal Inch) | 2.1250 |
| Knob to Flange Length (Decimal Inch) | 1.2660 |
