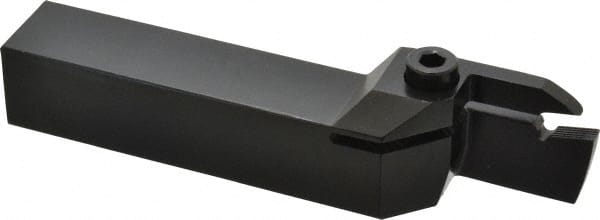

Seco - CFMR, Right Hand Cut, 1" Shank Height x 1" Shank Width, Indexable Turning Toolholder - 6" OAL, LC..1606.. Insert Compatibility, Series Multi-Directional Turning (MDT)
Item #: 00294215
Brand: Seco
Model #: 96180
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CFMR |
| Series | Multi-Directional Turning (MDT) |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | LC..1606.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Grooving; Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 2.0500 |
| Insert Width (mm) | 6.00 |
| Insert Width (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
