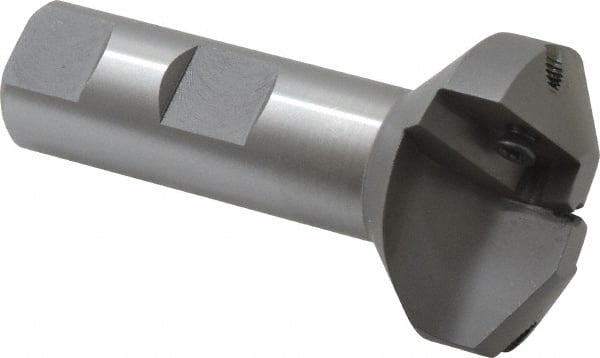

Everede Tool - 60° Lead Angle, 1.458" Max Cut Diam, 1/2" Min Cut Diam, 0.277" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, APLT 347 Insert Style, 3" Overall Length, Straight Shank, 120° Included Angle
Item #: 00306522
Brand: Everede Tool
Model #: CHM-500-60
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.4580 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Lead Angle | 60 |
| Included Angle | 120 |
| Overall Length (Decimal Inch) | 3.0000 |
| Insert Style | APLT 347 |
| Maximum Depth of Cut (Decimal Inch) | 0.2770 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Toolholder Style | CHM |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 0.9300 |
| Weldon Flat | Yes |
