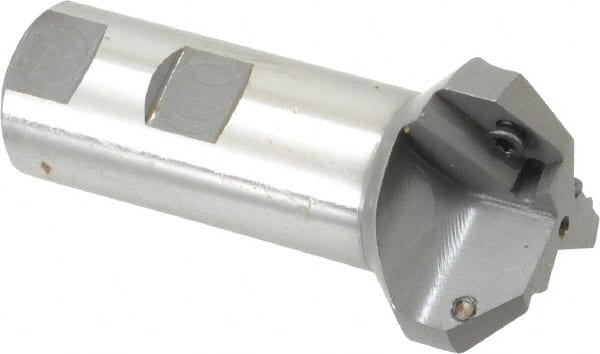

Everede Tool - 45° Lead Angle, 1.721" Max Cut Diam, 15/16" Min Cut Diam, 0.391" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, APLT 347 Insert Style, 3.2" Overall Length, Straight Shank, 90° Included Angle
Item #: 00306555
Brand: Everede Tool
Model #: CHM-938-45
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.9380 |
| Maximum Cutting Diameter (Decimal Inch) | 1.7210 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Lead Angle | 45 |
| Included Angle | 90 |
| Overall Length (Decimal Inch) | 3.2000 |
| Insert Style | APLT 347 |
| Maximum Depth of Cut (Decimal Inch) | 0.3910 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | CHM |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 0.9300 |
| Weldon Flat | Yes |
