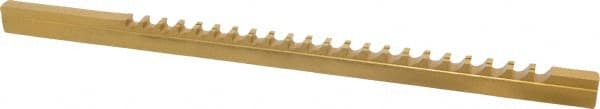

Dumont Minute Man - 5/16" Keyway Width, Style C, Keyway Broach - TiN Finish, 3/8" Broach Body Width, 11-3/4" OAL
Item #: 00310300
Brand: Dumont Minute Man
Model #: 22310
Exact Tooling IR#: 04
Features and Benefits
Keyway broaches are used for producing keyway-shaped holes in a workpiece. They may be used with shims if the depth cannot be broached in a single pass. They also require a guide bushing for producing the keyway.
Titanium nitride (TiN) is a multi-purpose coating that iincreases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.; Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat resistant and commonly used for high speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Keyway Broach Type | Keyway |
| Keyway Width (Inch) | 5/16 |
| Broach Style | C |
| Broach Coating | TiN |
| Broach Body Width (Inch) | 3/8 |
| Overall Length (Inch) | 11-3/4 |
| Number of Shims Required | 2 |
