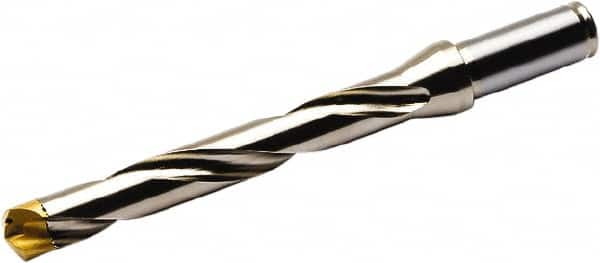

Seco - 15 to 15.99mm Diam, 7xD, 110mm Max Depth, 16mm Shank Diam, 123mm Flute, 189mm OAL, Replaceable Tip Drill - SD107 Toolholder, Series Crownloc
Item #: 00312975
Brand: Seco
Model #: 05092
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | Crownloc |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6295 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 4.3307 |
| Maximum Drill Depth (mm) | 110.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Toolholder Style | SD107 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (mm) | 123.00 |
| Flute Length (Decimal Inch) | 4.8425 |
| Body Length (mm) | 141.00 |
| Body Length (Decimal Inch) | 5.5512 |
| Toolholder Coating | TiAlN |
| Overall Length (mm) | 189.00 |
| Overall Length (Decimal Inch) | 7.4409 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
